Description

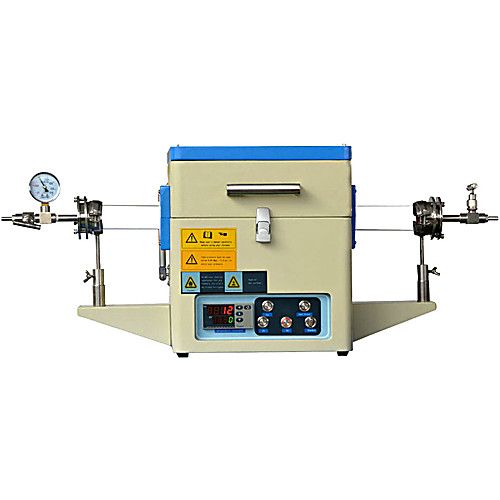

STF1200 50x600mm (OD x length) portable split tube furnaces feature spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by a 30-segment digital controller. All our furnaces are CE compliant. Features Compact, portable and lightweight design. Split furnace chamber for fast and easy tube access. Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot. Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.) Long life type K thermocouple. Safety Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions. Power failure protection resumes furnace operation right after the point of failure when power is reestablished. Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
